Specifically designed for R&D, laboratory and field application engineers, the 10G-EPON Xpert is a neutral, unbiased testing tool that helps telecom operators, MSOs and vendors accelerate time-to-market by cutting significant time from development, deployment and troubleshooting of 10G-EPON solutions.
As an independent and unbiased testing platform, the 10G-EPON Xpert is built without using any PON chipset. Using its unique multi-layer probing capability, it lays out a comprehensive picture of the protocols and traffic running line. It analyzes and displays the MPCPDUs and the OAM PDUs as well as the upper layers, including Ethernet, PPP, PPPoE, IPv4/IPv6, TCP, UDP, DHCP, IGMP, HTTP and RTP.

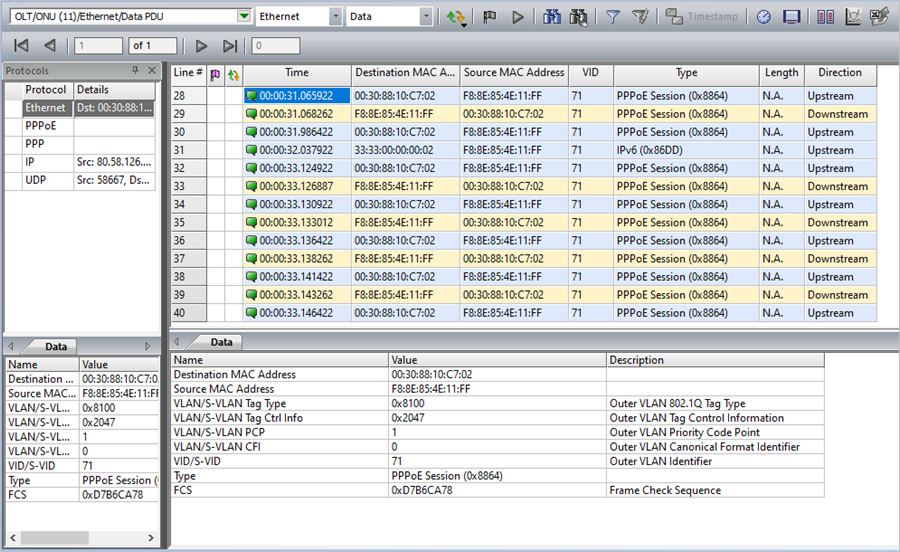

The 10G-EPON Xpert features a rich array of intuitive displays, graphs and tables for testing and troubleshooting of the 10G-EPON OLTs and ONUs. The displayed information includes downstream and upstream messages, procedures view, connectivity configuration diagrams, statistics and more.

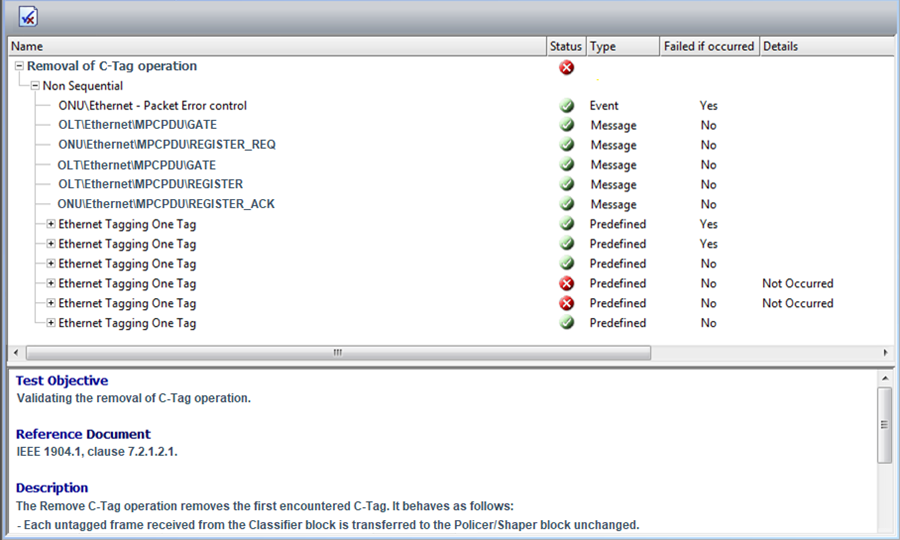

The 10G-EPON Xpert clearly indicates abnormal behaviors and deviations from the relevant standards, thus verifying standard compliance and interoperability between different vendors' OLTs and ONUs.
The 10G-EPON Xpert is available as a stand-alone product, or in combination with TraceSpan’s NG-PON Xpert, to allow the capture and analysis of the XG-PON, XGS-PON and/or NG-PON2 protocols using the same hardware platform.
 |
 |
||
 |
 |
||
 |
 |
||
 |
 |
 |
